LAB 12-7

LAB 12-7

Product number: 11223

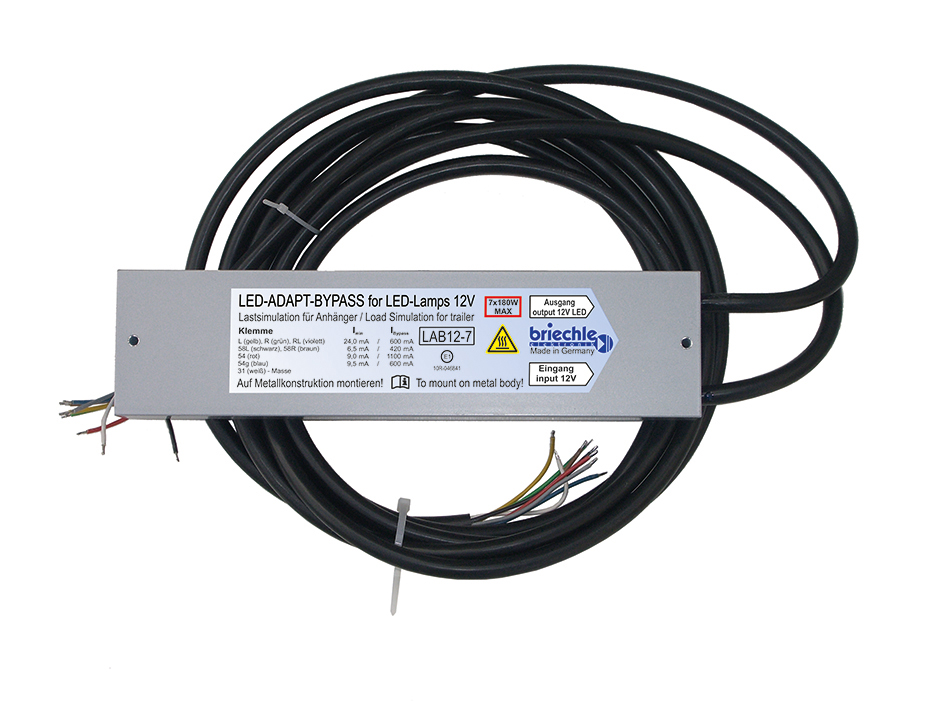

LED-ADAPT (Bypass)

▪ Operating voltage: 12V
▪ Input: open cable end
▪ Output: open cable end

Weight: 1.68 kg

12 Volt resistor replacement load for the adaptation of light emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of a LED unit is indicated and the replacement load is turned off. To cool the system a metal surface is needed. The Bypass-function enables subsequent mounting of bulbs up to 95W.

  • Simply connect ahead of LED lamps
  • LED-failure is indicated
  • The input will be connected to the output in a bulb connection
  • Serves all lines with replacment resistors
  • Short circuit proof
  • Input cable 3,5m can be connected directly to the plug
Operation voltage
12V nominal
Output current
max. 8A each line (bypass on)
Connection input
sheathed dable 7x1+1x2,5mm², bare endings
Connection output
sheathed dable 7x1+1x2,5mm², bare endings
Load imitation
2x17 W (direction), 2x4W (rear lamp), 1x34W (stop light) 1x17W (fog lamp), 1x17W (reversing lamp)
Cable length input
ca. 3,5m
Cable length output
ca. 1,2m
Temperature range
-40...+75°C
Electrical protection
Overcurrent, overtemperature, reverse polarity
Mechanical protection
entirely sealed (IP69K)
Dimensions
280 x 70 x 25mm
Mass
ca. 1680g
Failure monitor LEDs
24mA (direction), 860mA bypass, 6,5mA (rear lamps), 600mA bypass, 9mA (stop light), 1510mA bypass, 9,5mA (rear fog lamp), 860mA bypass, 24mA (refersing light), 860mA bypass
Mounting rule
cooling plate 8dm² (aluminium sheet 1.5mm thikness) or on chassis frame
