FP 24-2

FP 24-2

Product number: 11286

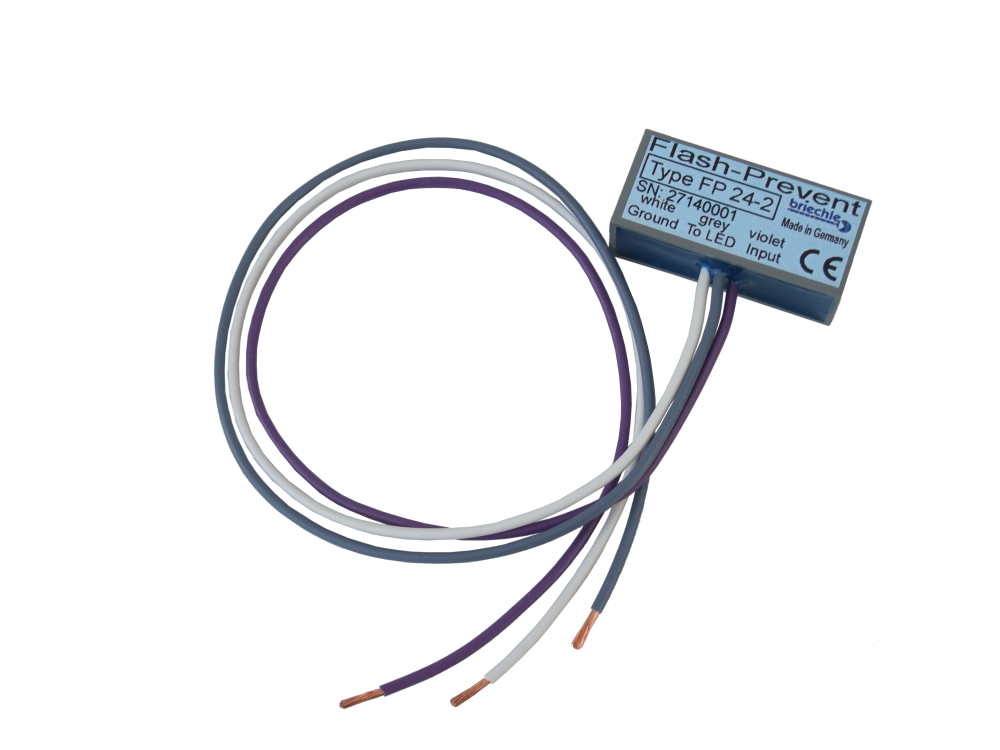

Flash Prevent 24 Volt

▪ Prevents flashing of LED lamps
▪ LED failure detection stays in function
▪ Easy installation ahead of to the LED
▪ possible to install inside the lamp housing

The Flash-Prevent prevents effectively the inadmissible flashing of LED lamps
caused by the vehicles pulsed cold scan ("hard" and short pulse
ab. 10ms). The failure of an LED will be monitored.
Attention! Flash-Prevent doesn't replace LED-ADAPT.

  • Effectively prevents flashing of LED lamps
  • The failure detection stays in function
  • Easy installation due to compact dimensions
  • Easy installation ahead of to the LED lamps
  • Completes LED-ADAPT in combined monitoring



Operation voltage
24V nominal
Output current
LED (max 0.4A)
Connection input
strand with bare endings
Connection output
strand with bare endings
Load imitation
within 0-50ms cold filament
Cable length input
0.30 m
Cable length output
0.30 m
Temperature range
-40 … +75°C
Mechanical protection
entirely sealed (IP69K)
Dimensions
40 x 18 x 15 mm without cable outlet
Mass
approx. 27g Failure monitor LEDs
Failure monitor LEDs
integrated
