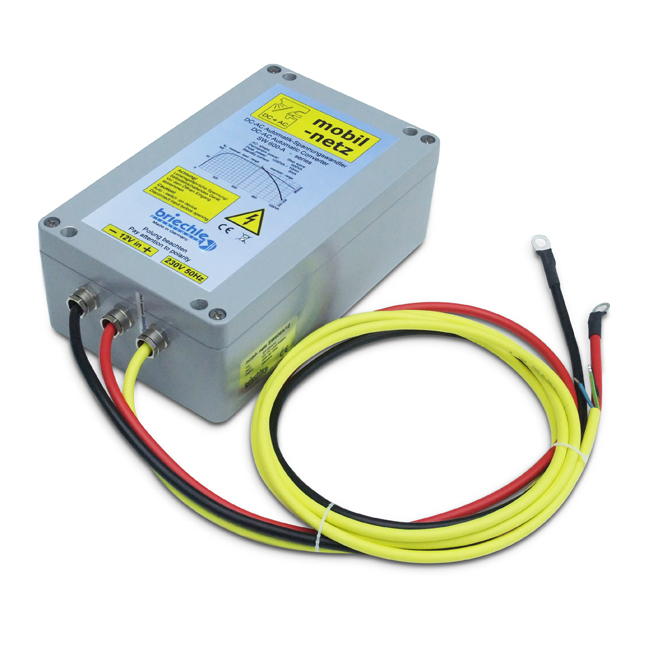

SW 600A-12

SW 600A-12

Product number: 10067

Converter "MOBIL-NETZ"

▪ IN: 12V / OUT: 230V/50Hz
▪ Input: 2x open cable ends
▪ Output: open cable ends

Weight: 8 kg

Professional inverter 12V to 230V AC for rough environmental conditions

  • waterproof
  • starts automatically, 5mA standby
  • perfectly suitable for fixed installation in service vehicle, separate socket
  • 100% overload possible
  • Attention: no sinus, but almost all consumers con be connected
Input voltage
10 ... 15V DC
Output voltage
225V +3% / -5%, 50Hz quarz-generated (115V/ 60Hz optional)
Output power
600VA permanent, 1,200VA 10min, 12A (24A at 115V) 4sec
Connection input
2x open cable end
Connection output
open cable end
Cable length input
2x app. 1200mm
Cable length output
app. 2300mm
Current without load
standby current 5mA RMS at 12V
Switching level
start at 1W load
Current at 1W load:
1A at 12V
Overvoltage
>16V, self resetting
Undervoltage
off at 10V, on at 11V
Efficiency
app. 95% at 100% load / app. 80% at 10% load / app. 80% at 200% load
Electrical protection
against reverse polarity, overtemperature, short circiut
Mechanical protection
aluminium casting case IP66
Dimensions
260 x 160 x 90mm (without screwings) without cable outlet
Mass
app. 8,000g incl. Cables
Signalform
stepweave with fast PWM-modulation (to cos phi 0.2 at 50% load)
Safety
potential division with potential compensation (protective conductor)
